Application: External timber walls

Installing Steico sarking & sheathing boards over the wall frame provides numerous benefits:

  • External insulation layer provides thermal bridge free construction.
  • Provides an additional weather & water protection layer
  • Improves sound proofing properties of the building envelope
  • Boards can be exposed to the elements for up to 12 weeks
  • Vapour open allowing moisture in the building fabric to escape
  • Reduces air draughts due to its Tongue & Groove design
  • Provides additional bracing  strength to the building element
  • Adds additional fire resistant qualities to the building envelope
Timber wall with timber cladding.jpg

Wall construction 1

Rear ventilated cladding

  1. Inner lining

  2. Timber frame

  3. Steico Flex036​

  4. Board (Universal / Duo Dry / Special Dry)

  5. Cladding with rear ventilation

Timber wall with render.jpg

Wall construction 2

Rendered system

  1. Internal lining layer

  2. Timber frame

  3. Steico Flex036​

  4. Board (Duo Dry / Special Dry)

  5. Lime based render system

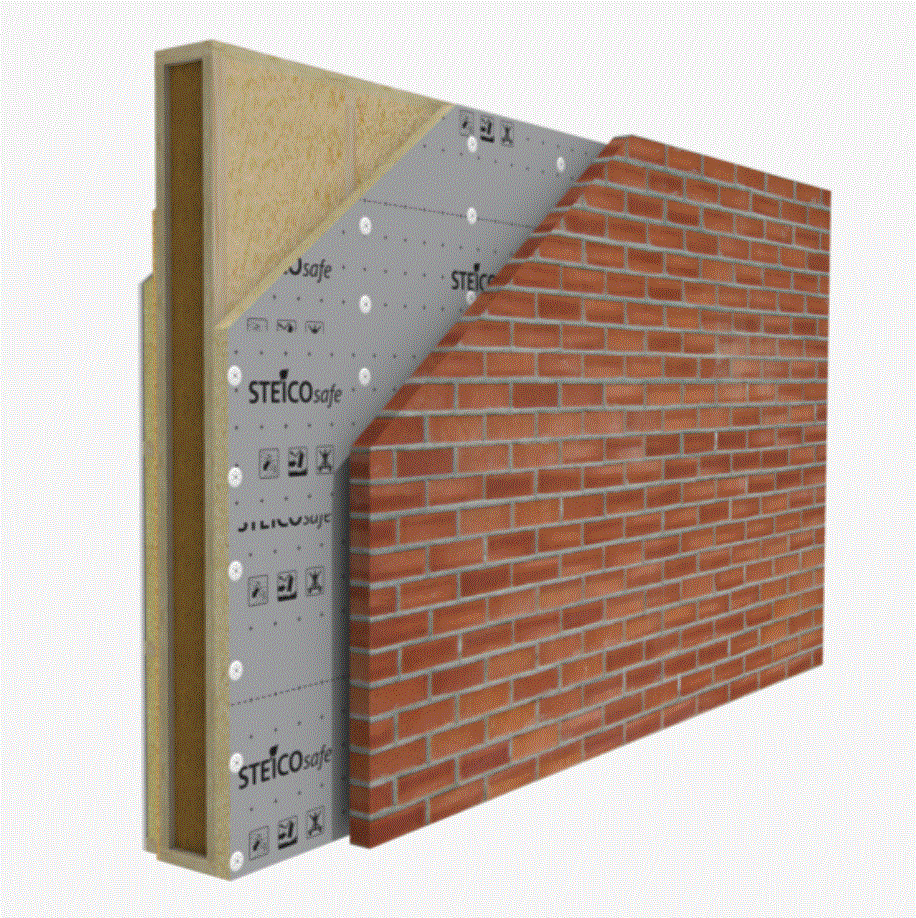

Timber wall with brick facade.gif

Wall construction 3

Brick veneer

  1. Internal lining layer

  2. Timber frame​

  3. Steico Flex036​

  4. Board Steico Safe

  5. Brick veneer

STEICO sarking & sheathing roof boards at a glance

We carry the Steico Universal, Duo Dry , Special Dry and Safe  wood-fibre boards that are all suitable for external wall installation. The Duo Dry & Special Dry suitable for a render finish.

The  boards are hydrophobic, i.e., water-repellent. Rainwater’s surface tension cannot break through sarking boards but runs off the surface. Provided with a tightly closing, all-round tongue and groove profile, the boards offer a rainproofing function and serve as temporary covering

The boards come in standard sizes and a variety of thicknesses & R values. Click on the buttons above for product details.


steico UNIVERSAL

View Product

steico SAFE

View Product
Steico Protect-H Board

steico Duo Dry

View Product

steico SPECIAL DRY

View Product

Typical installation

With a cladding system

  1. Boards are permanently fixed to the timber structure using timber battens & screws.

wall drawing.png
when rendering the boards

  1. Boards are secured the timber frame using large head stainless steel staples or specialised screws with a plastic washer.

Downloads
Installation Guide for  Sheathing & Sarking boards.
Downloads
Installation Guide for  render boards
Steico_ETICS - Guide.jpg
Need some help choosing


We can help you understand the options depending on your construction type



​
