Steico FLOOR
Laying system for plank floors
Applications
• Timber floors
• Concrete floors
Price
40mm = $54.00 / m²
Price includes insulation boards & timber floor battens
GST included
Product info
Floor insulation system used for solid wooden floors to avoid acoustic bridging. Good impact sound and heat insulation for various types of floors.
Advantages
• acoustic insulation against impact and airborne sound
• enables mechanical fixing of the deck to the battens
• excellent insulation qualities
• water vapour open
• enhanced vapour transfer
• helps to regulate the indoor climate
• ecological and environmentally friendly
• recyclable
• product made from wood fibres, independently certified by the FSC®
Stocked thickness
40mm (board + battens)
Other available thickness - 60mm / Minimum pallet order (Download Datasheet below for Sqm per pallet). Order lead time is 3 months
Board dimensions

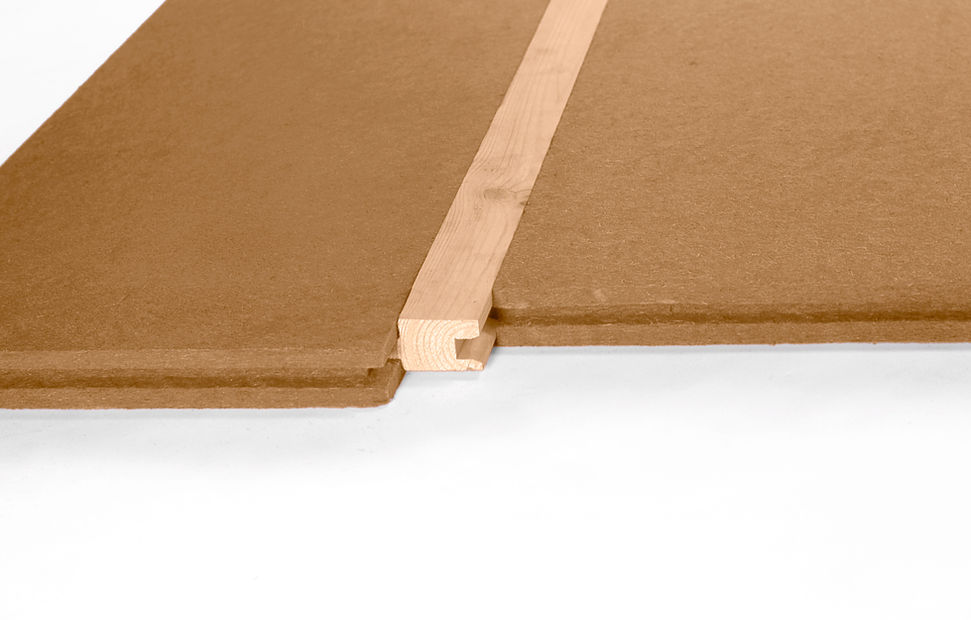

Board is 200mm long x 380mm / Tongue & Groove all 4 sides
Timber strips - 2m long x 50mm wide x 35mm thick - Tongue & Groove
R-Values
R 1.04 (40mm)
Product format
Boards are sold by: Pallet
Board thickness: 40mm
Board size: 1200mm (L) x 380mm (W)
Board edge: Tongue & Groove
Board weight: 6.4 kg/m²
Boards per pallet: 104 pieces
Area m2 / Pallet:
Gross: 38.304
Net = 36.462
Pallet delivery size
Accompanying timber battens are delivered in a separate pallet
